La Catrina – Full Network & System Integration
La Catrina came to Jefferson Network Solutions needing a reliable, fully integrated tech infrastructure for their new restaurant—and we delivered from the ground up.
We installed a complete Cat6 network to support their point-of-sale system, kitchen printers, Bose sound system, and 10-camera security setup. Every cable was professionally routed, terminated, and tested for optimal performance, with clean wall plate finishes throughout.
This project also included a full Bose restaurant-grade audio system with 10 premium speakers and dual subwoofers—designed for immersive sound in both dining and bar areas. The 4k security system covers all key zones with remote access capabilities and clean cable management.
La Catrina now runs on a network built for speed, security, and scale—ready for opening night and beyond.
Project Snapshot
Client: La Catrina
Industry: Restaurant / Hospitality
Project: New Restaurant Technology Buildout
Environment: Commercial Restaurant
Network: Cat6 Structured Cabling
Security: 10-Camera 4K Surveillance System
Audio: Bose Commercial Audio, 10 Speakers + Dual Subwoofers
Systems Supported: POS, Kitchen Printers, Audio, Cameras & Network Equipment
The Challenge
Building the Technology Infrastructure From the Ground Up
Because La Catrina was opening a new restaurant, the technology infrastructure needed to be planned alongside the physical buildout.
The network had to support multiple systems throughout the property, including point-of-sale terminals, kitchen printers, security cameras, network equipment, and restaurant audio.
Each system had different placement, connectivity, and cabling requirements, but all of them needed to work together without leaving the finished restaurant with exposed or disorganized wiring.
The objective was to create one clean infrastructure that could support day-to-day operations while remaining organized and serviceable after opening.
The Solution
One Infrastructure Supporting the Entire Restaurant
Jefferson Network Solutions installed the structured cabling and connected systems required throughout the restaurant.
The project included:
Complete Cat6 structured cabling installation

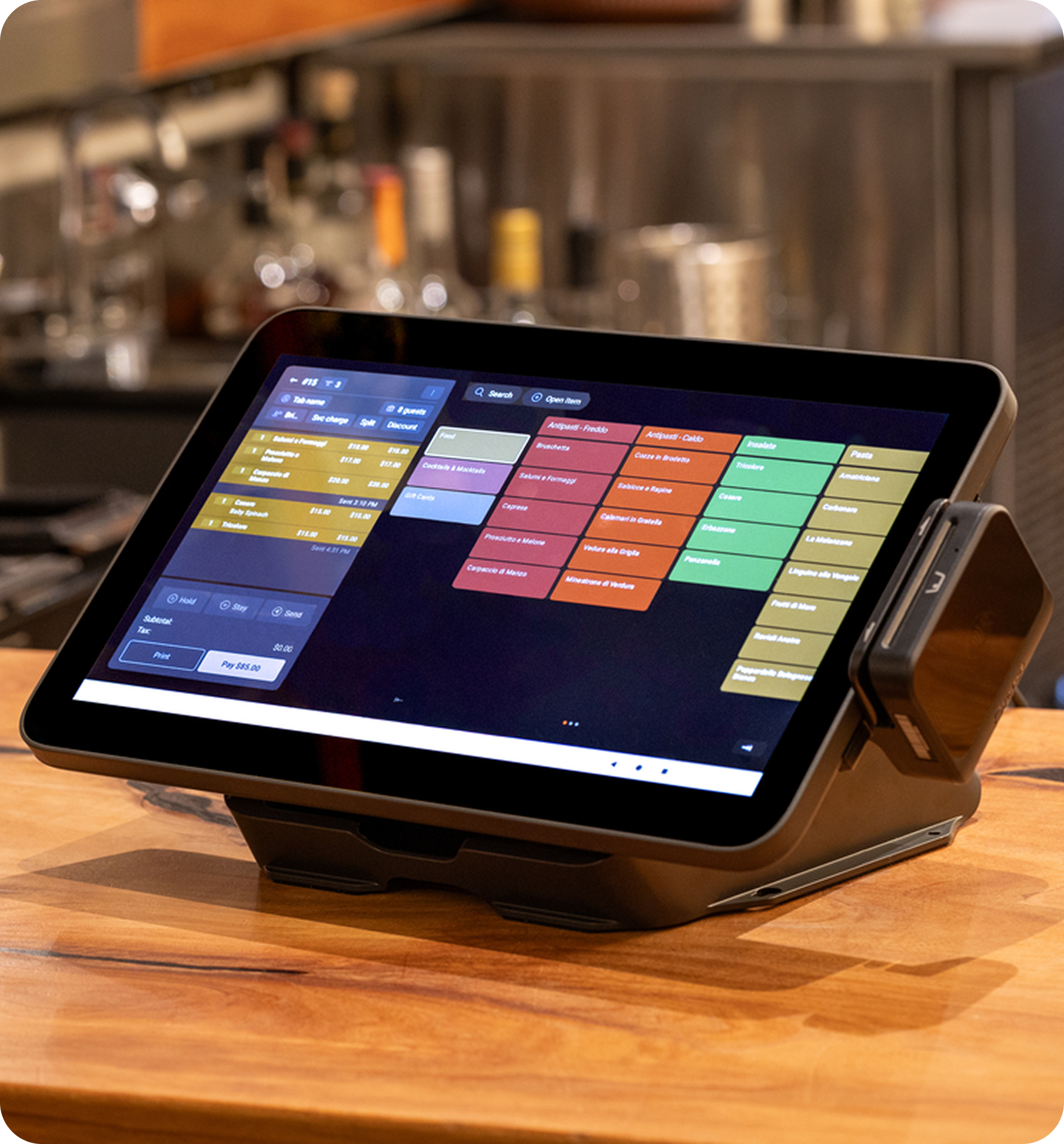

POS network connections
Kitchen printer connectivity
Network equipment integration

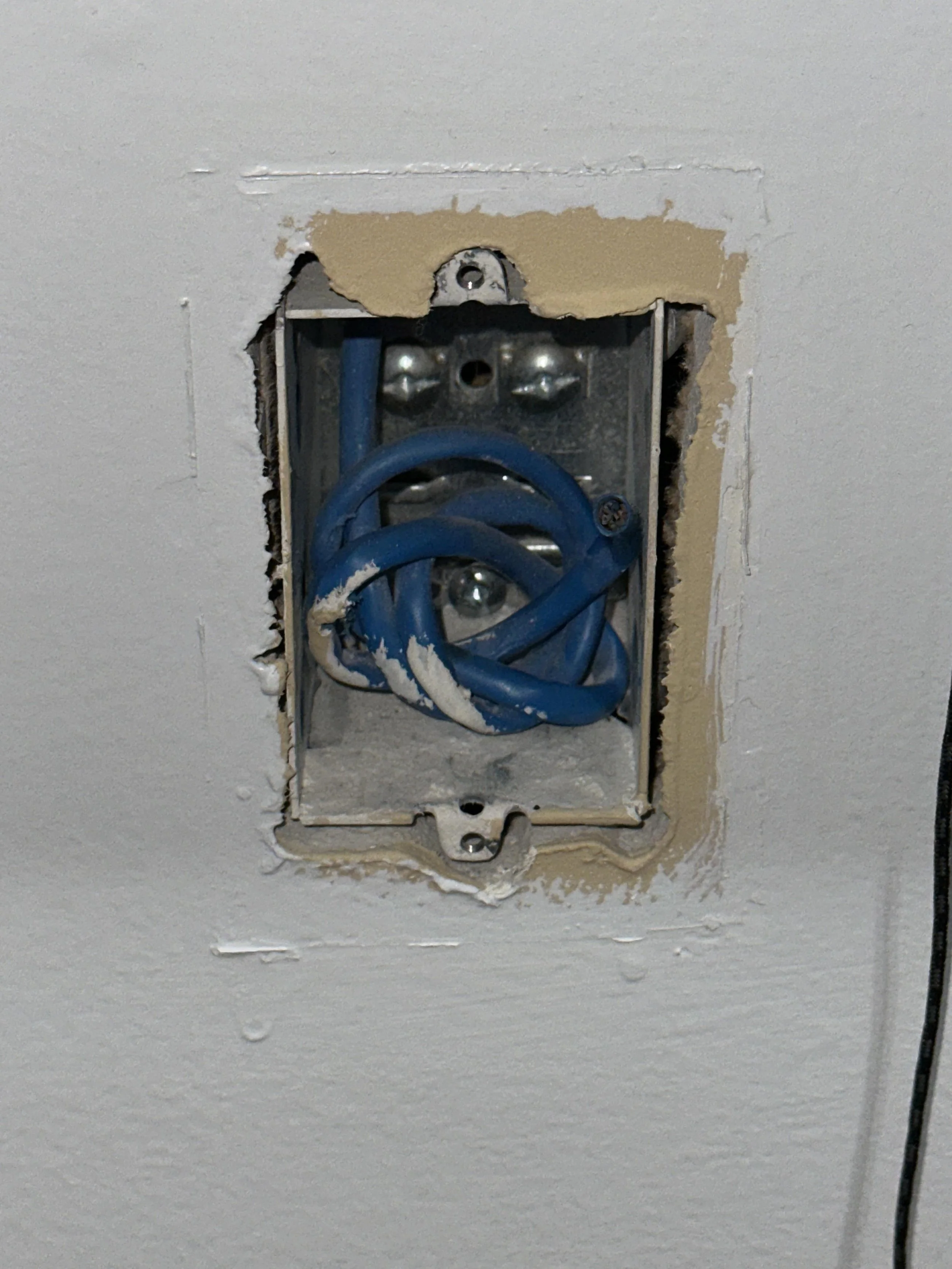

Clean wall plate terminations
Cable labeling and organization
Individual cable termination and testing
10-camera 4K surveillance installation
DVR/NVR and remote-viewing configuration
Bose commercial restaurant audio system
10 premium speakers
Dual subwoofers
Audio coverage across dining and bar areas
Clean equipment and cable management
Final system testing and verification
Rather than treating networking, surveillance, POS connectivity, and audio as separate installations, the project was coordinated as one complete technology buildout.

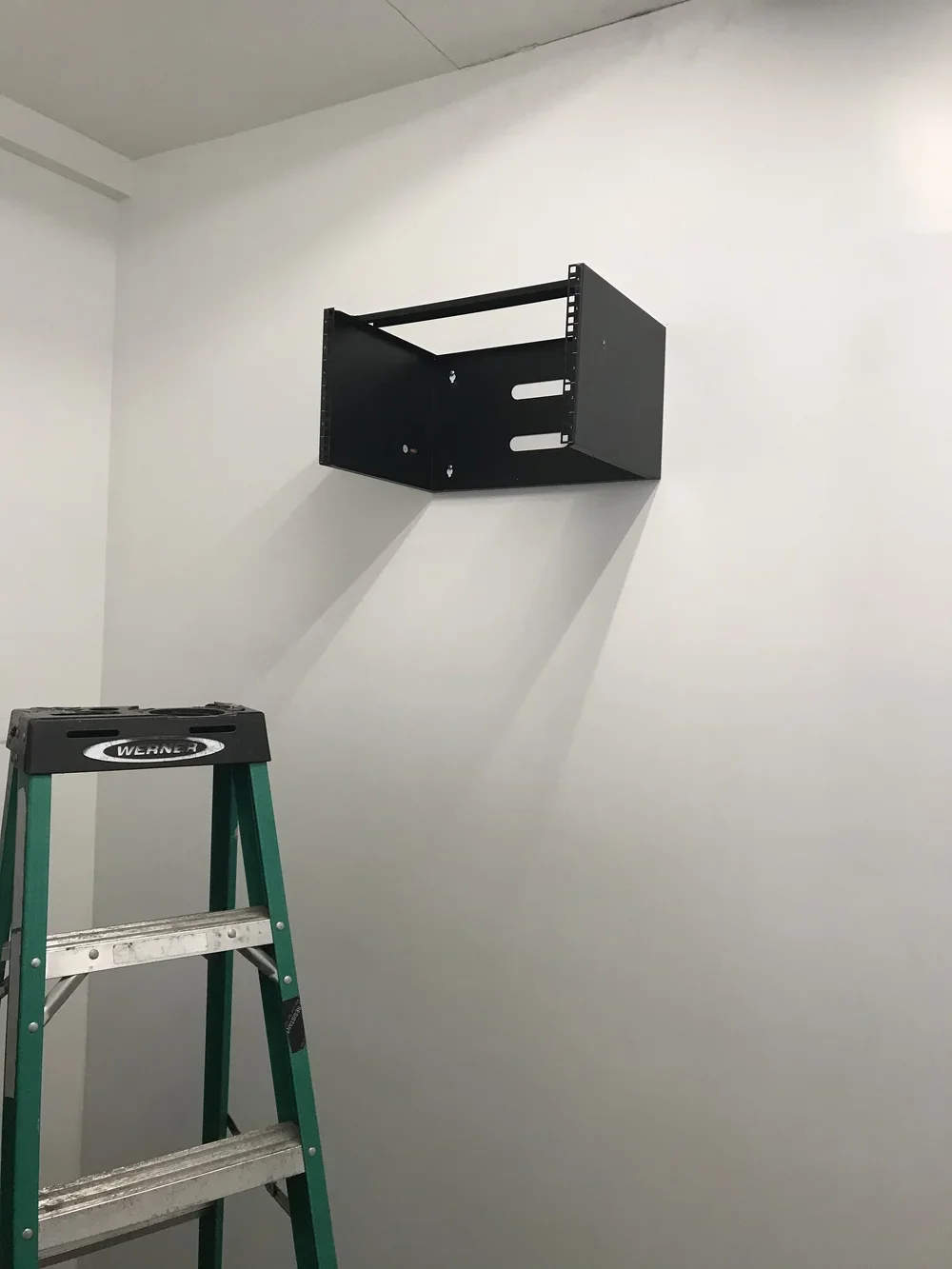

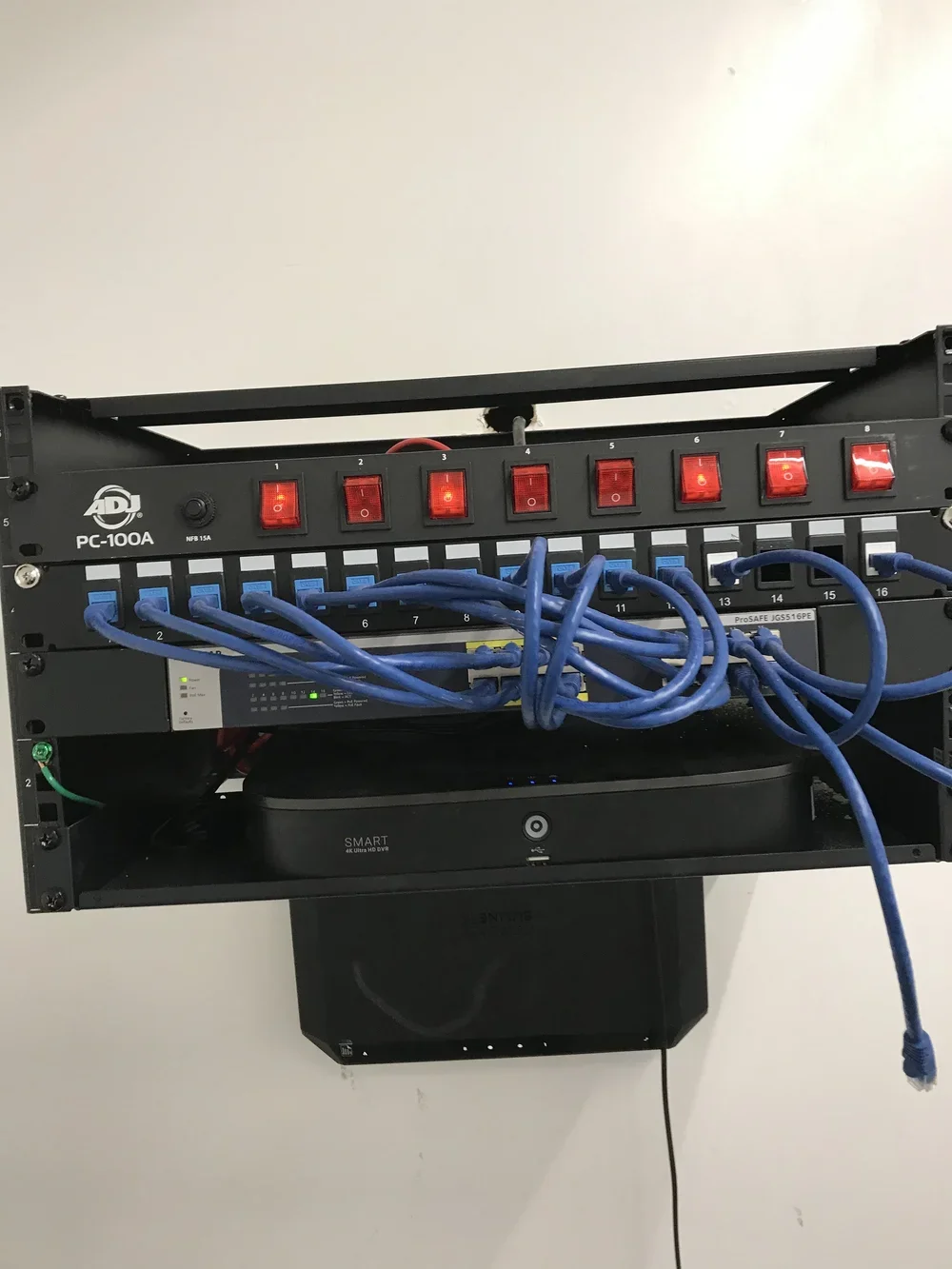

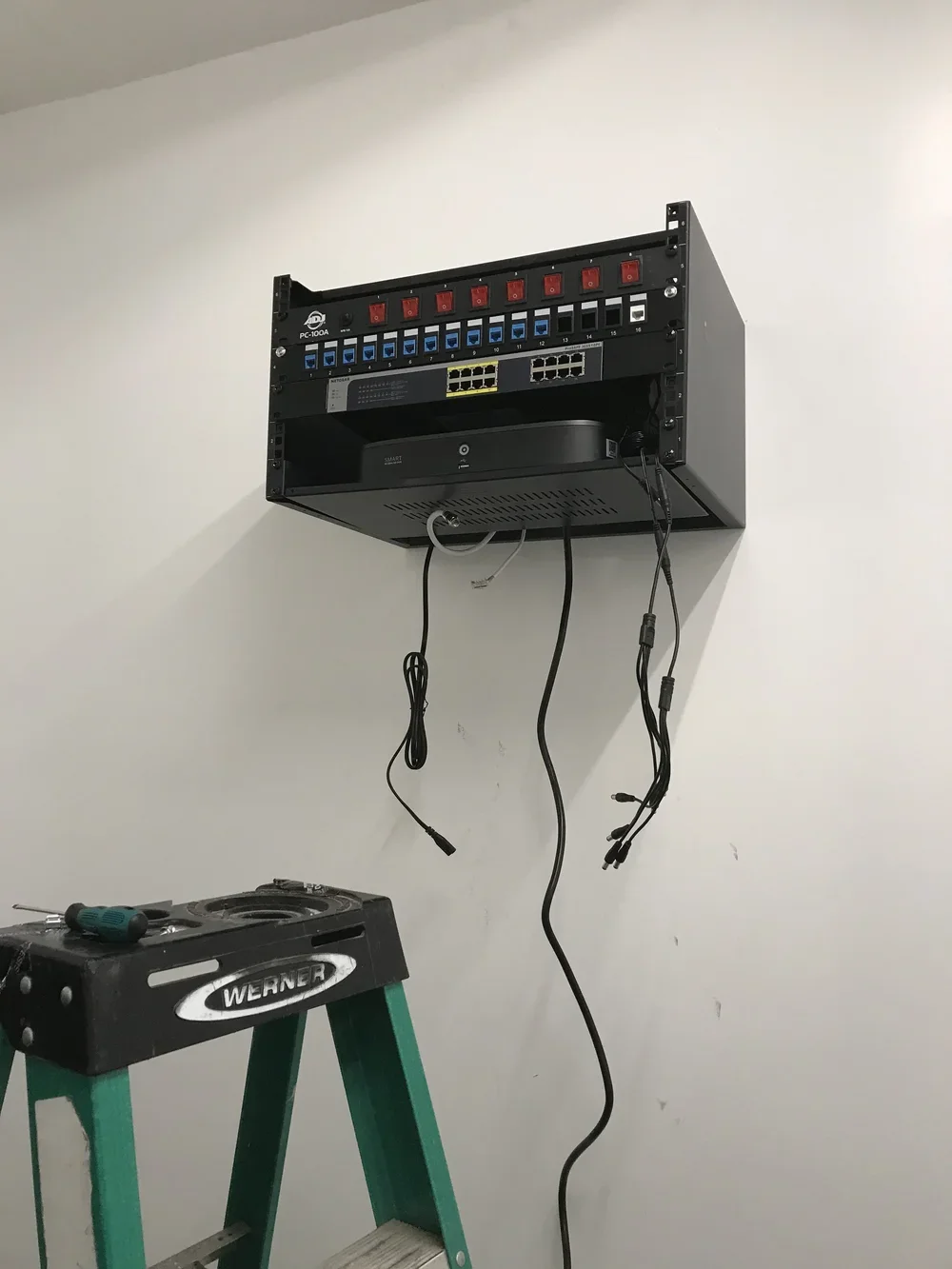

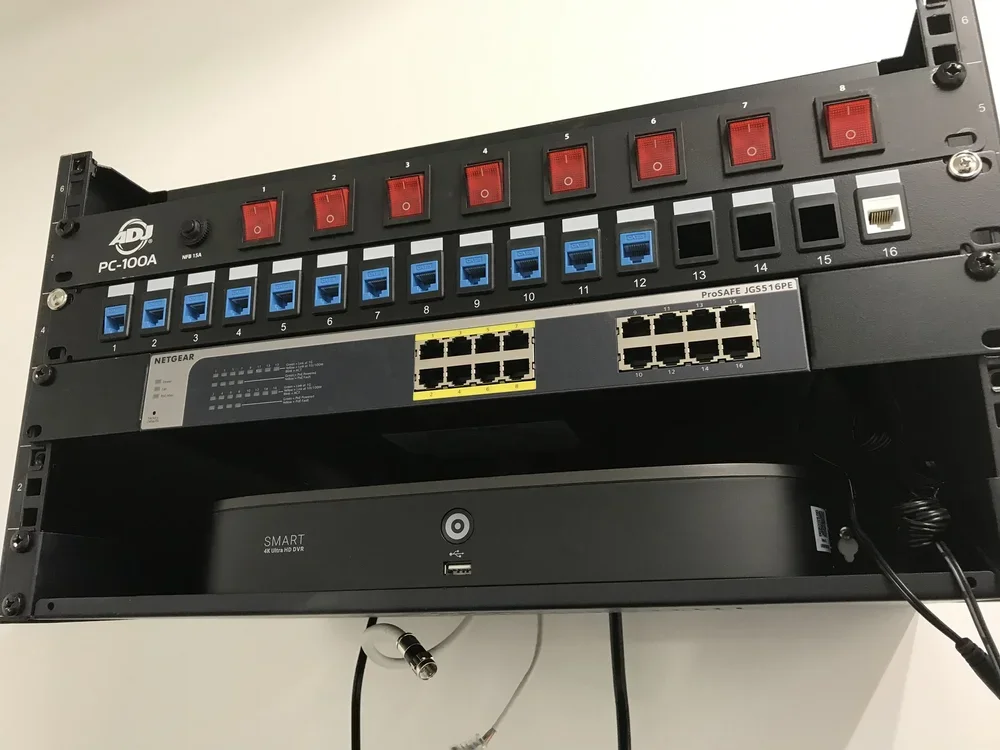

Network Infrastructure
Cat6 Connectivity Across the Restaurant

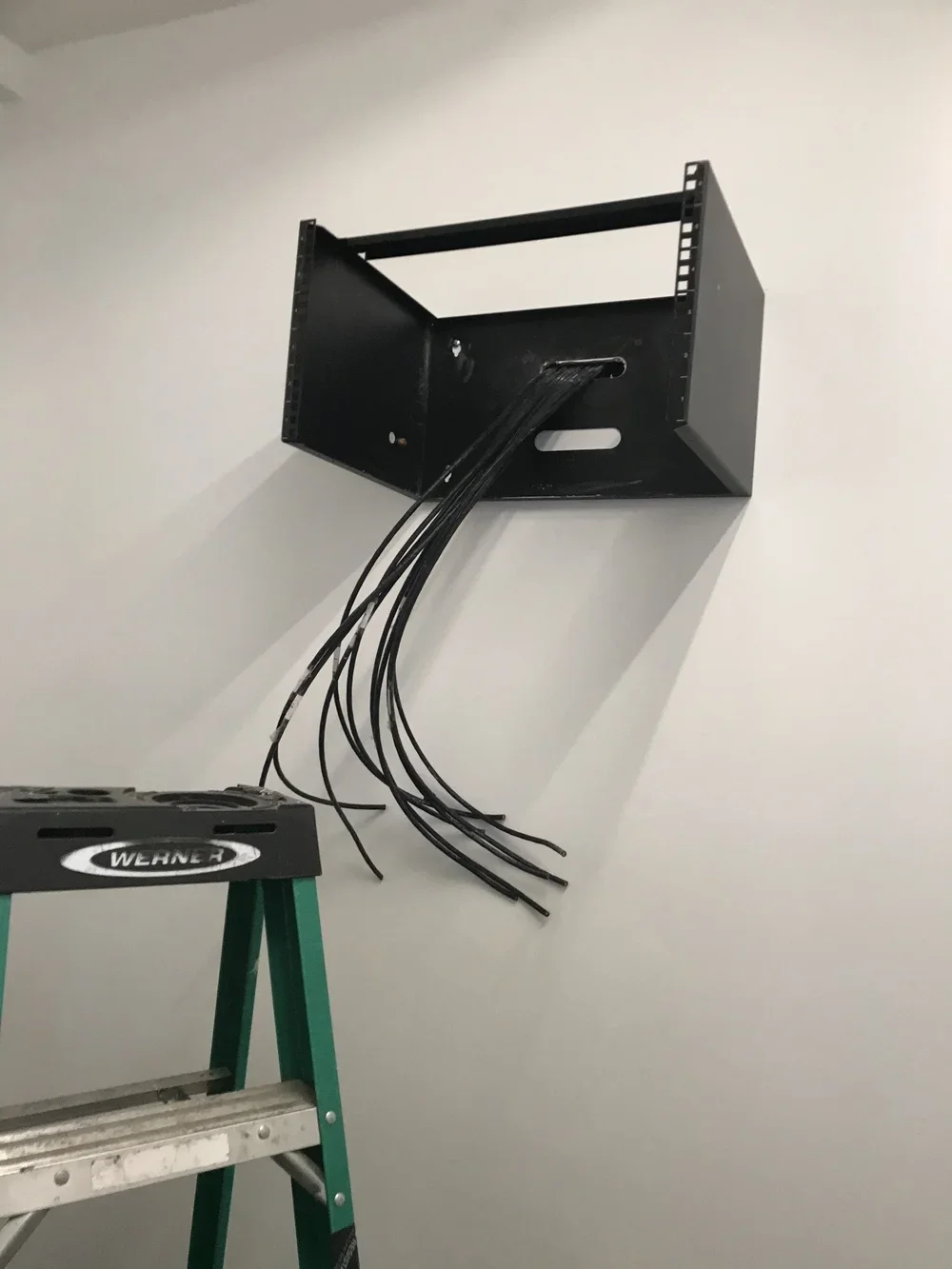

The structured network serves as the backbone connecting La Catrina’s technology.
Cat6 cabling was routed to the locations required for:
POS terminals
Kitchen printers
Security cameras
Network equipment
Other connected restaurant devices
Each line was properly terminated, labeled, and tested before completion.
This created a centralized network infrastructure that is easier to troubleshoot, maintain, and expand as equipment changes in the future.
Restaurant Audio
Bose Commercial Audio Throughout the Space
The restaurant also required audio that could provide consistent sound across both dining and bar areas.
Jefferson Network Solutions installed a Bose commercial audio system consisting of:
10 premium speakers
Two subwoofers
Distributed audio coverage
Organized audio cabling
Central equipment integration
The system was designed to provide balanced background audio throughout the customer-facing areas without relying on standalone consumer speakers throughout the restaurant.
Security Camera System
4K Coverage Across Key Areas
A 10-camera 4K surveillance system was installed to provide visibility across important areas of the restaurant.
The installation included:
10 security cameras
4K recording capability
Centralized recording equipment
Remote viewing
Network integration
Organized camera cabling
Clean equipment installation
Camera locations were selected around the restaurant layout and operational areas requiring visibility.
The Result
Ready for Opening Day
By coordinating the network, POS connectivity, surveillance, and audio infrastructure during the buildout, La Catrina opened with its core technology already installed and organized.
The finished project provided:
Structured Cat6 connectivity throughout the restaurant
Reliable wired connections for POS and kitchen equipment
Centralized security-camera coverage
Remote camera access
Distributed Bose commercial audio
Clean wall terminations
Organized network and equipment cabling
Infrastructure designed to remain easier to maintain and expand
This project demonstrates the advantage of planning a restaurant’s technology infrastructure as one integrated system instead of several separate installations.
